IS Series

Interior Design

IS 7

dual 7" 2-way full range line array loudspeaker

Frequency Range (+/-3 dB)

Nominal Directivity (-6 dB) H x V

Maximum Peak SPL**

Components LF

Components HF

Power Handling (AES / Peak) LF

Power Handling (AES / Peak) HF

Recommend Amplifier

80 Hz - 18 kHz

100° x 12.5°

138 dB

2 X ND7-LM8

NH3-16 3” Diaphragm / 1.4” Exit Compression Driver

500 / 2000 W

110 / 440 W

Lab Gruppen: D40:4L = 4 x IS 7

D80:4L = 8 x IS 7

D120:4L = 12 x IS 7

Interior Design

IS 7p

dual 7" 2-way full range point source loudspeaker

Frequency Range (+/-3 dB)

Nominal Directivity (-6 dB) H x V

Maximum Peak SPL**

Components LF

Components HF

Power Handling (AES / Peak) LF

Power Handling (AES / Peak) HF

Recommend Amplifier

80 Hz - 18 kHz

70° x 40° or 100° x 50° Rotatable

136.5 dB

2 X ND7-LM16

NH3-16 3” Diaphragm / 1.4” Exit Compression Driver

500 / 2000 W

110 / 440 W

Lab Gruppen: D40:4L = 4 x IS 7p

D80:4L = 8 x IS 7p

Interior Design

IS 7px

dual 7" 2-way full range passive point source loudspeaker

Frequency Range (+/-3 dB)

Nominal Directivity (-6 dB) H x V

Maximum Peak SPL**

Components LF

Components HF

Power Handling (AES / Peak) Passive

Recommend Amplifier

80 Hz - 18 kHz

70° x 40° or 100° x 50° Rotatable

135 dB

2 X ND7-LM16

NH3-16 3” Diaphragm / 1.4” Exit Compression Driver

500 / 2000 W

Lab Gruppen: D40:4L = 4 x IS 7p

D80:4L = 8 x IS 7p

Interior Design

IS 10

dual 10" 2-way full range line array loudspeaker

Frequency Range (+/-3 dB)

Nominal Directivity (-6 dB) H x V

Maximum Peak SPL**

Components LF

Components HF

Power Handling (AES / Peak) LF

Power Handling (AES / Peak) HF

Recommend Amplifier

60 Hz - 18 kHz

100° x 10°

141.3 dB

2 X ND10-LM

NH4TA2 4” Diaphragm / 1.5” Exit Compression Driver

700 / 2800 W

160 / 640 W

Lab Gruppen: D80:4L = 4 x IS 10

D120:4L = 8 x IS 10

Interior Design

IS 10n

dual 10" 2-way full range line array loudspeaker

Frequency Range (+/-3 dB)

Nominal Directivity (-6 dB) H x V

Maximum Peak SPL**

Components LF

Components HF

Power Handling (AES / Peak) LF

Power Handling (AES / Peak) HF

Recommend Amplifier

60 Hz - 18 kHz

80° x 10°

141.3 dB

2 X ND10-LM

NH4TA2 4” Diaphragm / 1.5” Exit Compression Driver

700 / 2800 W

160 / 640 W

Lab Gruppen: D80:4L = 4 x IS 10n

D120:4L = 8 x IS 10n

IS 10p

dual 10" 2-way full range point source loudspeaker

Frequency Range (+/-3 dB)

Nominal Directivity (-6 dB) H x V

Maximum Peak SPL**

Components LF

Components HF

Power Handling (AES / Peak) LF

Power Handling (AES / Peak) HF

Recommend Amplifier

60 Hz - 18 kHz

70° x 40° or 100° x 50° Rotateable

139 dB

2 X ND10-LM

NH4TA2 4” Diaphragm / 1.5” Exit Compression Driver

700 / 2800 W

110 / 440 W

Lab Gruppen: D80:4L = 4 x IS 10p

D120:4L = 8 x IS 10p

04-Adamson-AddisonNZ-Arrays-Aug18-HR.jpe

IS 118

single 18" subwoofer

Frequency Range (+/-3 dB)

Maximum Peak SPL**

Components LF

Power Handling (AES / Peak) LF

Recommend Amplifier

35 Hz - 100 Hz

133 dB

ND18-S 18” Kevlar Neodymium Driver

500 / 2000 W

Lab Gruppen: D40:4L = 4 x IS 118

D80:4L = 8 x IS 118

D120:4L = 12 x IS 118

LR-Adamson_IS-Series_Weatherized-159.jpe

IS 119

single 19" subwoofer

Frequency Range (+/-3 dB)

Maximum Peak SPL**

Components LF

Power Handling (AES / Peak) LF

Recommend Amplifier

30 Hz - 100 Hz

138 dB

ND19-S 19” Kevlar Neodymium Driver

1200 / 4800 W

Lab Gruppen: D80:4L = 2 x IS 119

D120:4L = 4 x IS 119

D200:4L = 8 x IS 119

IS 219

dual 19" subwoofer

Frequency Range (+/-3 dB)

Maximum Peak SPL**

Components LF

Power Handling (AES / Peak) LF

Recommend Amplifier

29 Hz - 100 Hz

143 dB

2x SD19 19” Kevlar Neodymium Driver

3200 / 12800 W

Lab Gruppen: D200:4L = 3 x IS 219

CS7 dual 7" 2-way self-powered line array loudspeaker	CS7p dual 7" 2-way self-powered point source loudpeaker	CS10 dual 10" 2-way self-powered line array loudspeaker
CS10n dual 10" (narrow angle) 2-way self-powered line array loudspeaker	CS10p dual 10" 2-way self-powered point source loudspeaker	CS118 single 18" self-powered subwoofer
CS119 single 19" self-powered subwoofer

Adamson CS

Anchor 1

CS

SERIES

Point

Concentric

Point Concentric

PC 5

5" compact passive 2-way coaxial loudspeaker, with 70° conical dispersion pattern.

View Specification

Adamson Point Concentric series employs co-axial transducer technology to produce clean, linear sound from a small footprint. Most enclosures offer a true conical coverage pattern, which makes these loudspeakers perfectly suited for deployment in a wide variety of applications.

PC 6

Compact PC 6 fits well into many applications with its 70° conical pattern.

View Specification

Though small, all enclosures are still built with top-quality Baltic Birch, ensuring a warm, deep sound. RAL colour matching is also available to ensure that all installation requirements can be met.

PC 8

PC 8 is powerful enough to reinforce demanding audio as a standalone speaker.

View Specification

PC 10

PC 10 is the most high powered enclosure with conical dispersion in the Point Concentric series.

View Specification

Arch2O-10-extraordinary-concert-hall-des

With nominal 60° x 40° dispersion it is the only loudspeaker in the range that features a non-conical coverage pattern. It includes three M10 fly points as well as a built-in polemount socket.

PC 12

The Point Concentric 12, offers linear, high-resolution audio throughout its entire intended bandwidth.

View Specification

Adamson’s Point Series is designed to outperform all other conventional 2-way enclosures on the market. Combining our proprietary Kevlar cone designs with our highly engineered acoustic waveguides ensures that there is no trade-off needed when seeking high power and seamless coverage. Flexibility is also a key factor with the Point Series, as all waveguides are easily rotatable and each loudspeaker comes with a wide variety of suspension options. RAL colour matching is also available throughout the series to ensure that all installation requirements can be met.

Point 8

Point 8 will be right for speech or moderate level playback systems, and it's still powerful enough for jazz bands and other lighter live music.

View Specification

Point 12

Point 12 is the most versatile and offers both high fidelity and high SPL handling. It is recommended where high SPL is needed with a moderate amount of low frequency energy.

View Specification

Point 15

Point 15 is the largest cabinet which bridges the gap between high power and high fidelity, and should be the choice where high SPL and strong low mid power are a must.

View Specification

6e43343c-d436-4cd5-812e-36de894ee9c7.jpe

Point 115 Sub

Point 115 Sub has been designed to complement the Point 8 enclosure; its width matching the height of the Point 8 - it can be horizontally mounted under the Point 115 Sub.

View Specification

Point 215 Sub

Point 215 Sub has been designed to complement the larger Point Series 2-way enclosures; it encompasses 2x ultra powerful 15” Kevlar Neodymium LF Drivers, giving this enclosure an output of 136.3 dB (peak),

View Specification

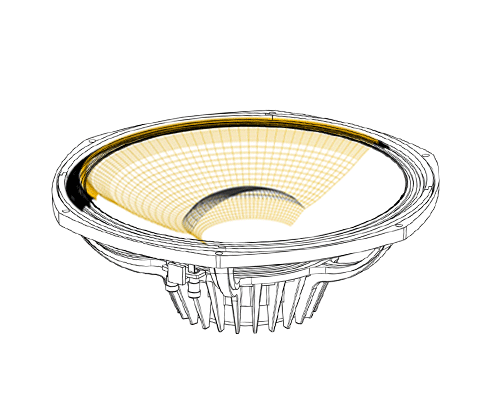

Advanced Cone Architecture

Highly engineered cone designs, manufactured with Kevlar®, raise the frequency of radial cone modes and increase the linearized pass band in our low-mid frequency components.
